My First Plug-in Training

Lesson 5: Simple Selection of a Group

Throughout the next few lessons, you will be extending the original code to include additional features and to improve robustness. In this lesson, you will improve your selection functionality, by making it easier for the user to select a group and make sure your plug-in anticipates the possibility of something unexpected happening.

Provide Feedback: Please provide feedback about this Revit Training or this lesson via email: myfirstplugin@autodesk.com
Lesson Downloads
lesson5_revit_2014_projects.zip (zip - 5660Kb)
lesson5_revit_2013_projects.zip (zip - 32720Kb)
lesson5_revit_2012_and_earlier_project_files.zip (zip - 7143Kb)

Planning out the New Functionality

When you launch the external command defined by the plug-in you created in Lesson 1, the status bar in Revit shows the prompt string, Please select a group. With the current implementation there are two scenarios that could prove problematic for your plug-in: first, the user may select a non-group element. Second, the user may click or press a wrong button or key during the input process. Neither of these possibilities have currently been anticipated by your original code. You will now add code to your plug-in to check for these error conditions and deal with them gracefully. First, let’s see what happens in these two situations and how best to deal with them:

  1. Selecting a non-group element:
    While selecting a group, the user’s cursor hovers over Room 1. In this case, the room, its bounding walls and the group itself could potentially each be highlighted and selected. However, your command expects the selected item to be a group. If the room or one of its bounding walls is selected, an error dialog, shown below, will be displayed before your command fails.



    To avoid incorrectly selecting an element other than a group while using your command, the user would have to move the cursor very carefully until the group is highlighted and then click to select it. The command should manage this situation more cleanly: while the message presented to the user gives information about the problem in the code, this is not at all helpful for the user of the plug-in.

    Plug-in Solution
    To reduce the chances of the user incorrectly selecting a non-group element, you will add a selection filter. A selection filter limits the types of object being selected during the user interaction. When you ask the user to select a group, only groups will be highlighted when hovered over in the Revit user interface. This will help guide users to select a group, even if they haven’t seen the prompt displayed on the status bar.
  1. Unexpected mouse clicks or button presses:

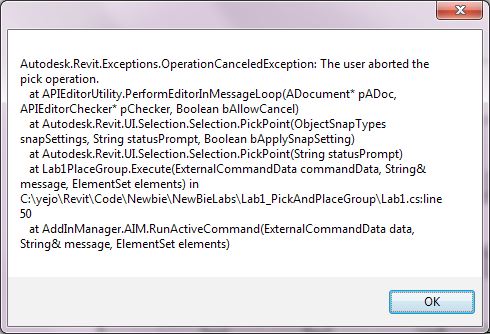

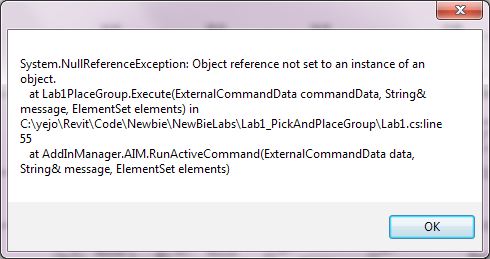

    While selecting a group or picking a point, it’s possible for users to click any mouse button or hit any key on the keyboard. This is currently a problem for your plug-in, as both PickObject() and PickPoint() only expect the user to left-click the mouse during selection. If the user right-clicks the mouse, or hits the “Esc” key to cancel this command, this following confusing error message will be displayed:



    Plug-in Solution
    To prevent this error message from being displayed, you will add code to catch the exception and handle it. If the exception is caused by the user right-clicking or hitting the “Esc” key, you will simply terminate the current command. For other exceptions, you will present the error message to the user via the standard Revit error dialog.

    Although the above should be enough to prevent these particular errors from being generated, you will also add an exception handling mechanism to deal with other possible errors, should they occur.

Coding the New Functionality

For clarity and better organization of the completed source code that we provide as an attachment for each lesson, we have changed the class names to match the lesson and the functionality we are working with.

In particular, in this lesson, the downloaded attachment’s class name is changed from “Lab1PlaceGroup” to “Lab5PickFilter”, as shown below:

public class Lab5PickFilter : IExternalCommand

{

Keep in mind that this change is not required, and that the detailed instructions we provide below assume you are always working from your original Lab1PlaceGroup code. That is why this name remains listed below and does not match the source code provided - whichever name you choose for your class name is fine.

You’ll start by adding your selection filter to highlight groups during the PickObject() call. You’ll then add an exception handler to avoid the obscure error message, should the user still select something other than a group.

  1. In Visual C# Express, re-open the project from Lesson 1.

  2. Define a selection filter for groups only:
    Type the following code fragment after the class Lab1PlaceGroup definition code (after the closed curly bracket for the Lab1PlaceGroup), feel free to check the complete code to ensure your location is correct.
    /// Filter to constrain picking to model groups. Only model groups
    /// are highlighted and can be selected when cursor is hovering.
    public class GroupPickFilter : ISelectionFilter
    {
      public bool AllowElement(Element e)
      {
        return (e.Category.Id.IntegerValue.Equals(
          (int)BuiltInCategory.OST_IOSModelGroups));
      }
      public bool AllowReference(Reference r, XYZ p)
      {
        return false;
      }
    }

    In the code window, replace this line:
        pickedRef = sel.PickObject(ObjectType.Element, "Please select a group");
    With the following two lines:
         GroupPickFilter selFilter = new GroupPickFilter();
         pickedRef = sel.PickObject(ObjectType.Element, selFilter,
    "Please select a group");
    We’ll come back to the explanation of the code later.
  1. Create error handling:
    Enter the following bold code in the Execute() method of the class Lab1PlaceGroup after the line that gets the document object and before the line asking the user to pick a group.
        Document doc = uiApp.ActiveUIDocument.Document;

        try
        {
         //…Move most of code in Execute method to here.
        }

        //If the user right-clicks or presses Esc, handle the exception
        catch (Autodesk.Revit.Exceptions.OperationCanceledException)
        {
          return Result.Cancelled;
        }
        //Catch other errors
        catch (Exception ex)
        {
          message = ex.Message;
          return Result.Failed;
        }

    Then move the following block of code to be enclosed by the try’s two braces.
          //Define a Reference object to accept the pick result.
          Reference pickedRef = null;

          //Pick a group using a filter.
          //So only group can be selected.
          Selection sel = uiApp.ActiveUIDocument.Selection;
          GroupPickFilter selFilter = new GroupPickFilter();
          pickedRef = sel.PickObject(ObjectType.Element, selFilter,
            "Please select a group");
          Element elem = pickedRef.Element;
          Group group = elem as Group;

          //pick a point
          XYZ point = sel.PickPoint("Please pick a point");

          //place the group
          Transaction trans = new Transaction(doc);
          trans.Start("Lab");
          doc.Create.PlaceGroup(point, group.GroupType);
          trans.Commit();

    All exceptions that might occur during execution of the above code will be caught and handled gracefully by this exception handling mechanism.

    After the above two steps, you have completed your code for this lesson. The complete code for this lesson is also provided for download at the top of this lesson. It can be useful to see the complete code to compare your results and ensure they are correct.

  2. Save the file:
    On the File menu, click Save All.

  3. Build the project:
    Note: If Revit Architecture is already running, please close it.

    Inside Visual C# Express, in the Debug menu, click Build Solution to compile and build your plug-in. If the code builds successfully, you will see the Build succeeded message in the status bar of Visual C# Express.

Running the Plug-in

  1. Start Autodesk Revit Architecture.

  2. Open the Hotel.rvt Project file.

  3. Start the command as you did in Lesson 1. (In the Revit Add-Ins ribbon tab, click the External Tools drop-down list, and then Lab1PlaceGroup to start executing your plug-in’s command.)

  4. Move the cursor over Room1. Irrespective of the geometry being hovered over, only the furniture group should be highlighted. Click to select the furniture group.

  5. You are now asked to select a point – and it is expected you will do so by left-clicking. To test your exception handler, right-click instead. The command should end without an error message. Similarly, instead of right-clicking, if you hit the “Esc” key, the command should also end cleanly.

A Closer Look at the Code

Object Selection
You called the PickObject() method to prompt the user to select a group. This method has four different forms as shown in the image below.

Each form has specific functionality and has a specific parameter signature. The ObjectType argument specifies the type of element that you would like selected – this is common across all four forms.

In Object-Oriented Programming, a method with the same name can take different numbers and types of parameters. This concept is known as overloading. In your original code, you called PickObject() this way:

    pickedRef = sel.PickObject(ObjectType.Element, "Please select a group");
This corresponds to the third overload in the above list:
public Reference PickObject(ObjectType objectType, string statusPrompt);

This overload takes two arguments: an object type and a prompt string. As the argument names indicate, the prompt string will be displayed in the status bar. The user will be allowed to select an element of the specified ObjectType.

In the code you wrote in this lesson, a selection filter is needed to constrain the range of types that can be selected. You did this by using the fourth overload in the list:

public Reference PickObject(ObjectType objectType, ISelectionFilter pSelFilter,
string statusPrompt);

This overload expects you to pass in three arguments: an object type, a selection filter, and a prompt string. The second argument should be an instance of the class that implements the ISelectionFilter interface. We introduced the concept of an interface in Lesson 3, when talking about the IExternalCommand interface. In this lesson you created the GroupPickFilter class which implements the ISelectionFilter interface to tell Revit which elements and references can be selected.

The ISelectionFilter interface has two methods to be implemented: AllowElement() and AllowReference(): you needed to implement both of these in your GroupPickFilter class. The function parameter signatures of AllowElement() and AllowReference() are specified in the Revit API. The signatures of these two methods are shown in the following code.

Here is the skeleton for the new GroupPickFilter class:

public class GroupPickFilter : ISelectionFilter
{
  public bool AllowElement(Element e)
  {
    //insert your code here
  }
  public bool AllowReference(Reference r, XYZ p)
  {
    //insert your code here
  }
}

During the selection process, when the cursor is hovering over an element, this element will be passed into the AllowElement() method. The AllowElement() method allows you to examine the element and determine whether it should be highlighted or not. If you return true from this method, the element can be highlighted and selected. If you return false, the element can be neither highlighted nor selected.

It’s in the implementation of AllowElement() that you decided whether or not the element should be selectable by checking its category. This is the line of code that checks if the given element’s category type is of “model group”:

    return (e.Category.Id.IntegerValue.Equals(
(int)BuiltInCategory.OST_IOSModelGroups));

e.Category.Id.IntegerValue – gets the integer value of the category ID from the element e passed in as a parameter to AllowElement().

BuiltInCategory.OST_IOSModelGroups – refers to a number identifying the built-in “model group” category, which we retrieve from the BuiltInCategory collection of fixed integer values.

The BuiltInCategory collection is called an enumeration and is declared using the enum keyword in the C# language. An enumeration is a way of associating a human-readable string of characters with an underlying integer: you can think of an enum as a list of integers, each of which has an associated string that can be used instead of the number itself. OST_IOSModelGroups is a particular value in this BuiltInCategory enumeration. In this case it actually refers to the integer value -2000095, although you never really need to know this and it would be bad programming practice to use this number directly in your code.

Since members of an enum are actually integers, you performed a cast to convert BuildingCategory.OST_IOSModelGroups into an integer to be able to compare it with the category ID value. If the category ID of the element passed into AllowElement() equals the model group’s category ID, then this element is a group and so should be selectable.

As AllowElement() returns a Boolean value (which is either “true” or “false”), it was possible to simplify the code into a single line in your method implementation:

  public bool AllowElement(Element e)
  {
        return (e.Category.Id.IntegerValue.Equals(
      (int)BuiltInCategory.OST_IOSModelGroups));
  }


The second method that you needed to implement is AllowReference(). During the selection process, if the cursor is hovering over a reference, this reference will be passed into the AllowReference() method. Once again, if you return true from this method, then the reference can be highlighted and selected. If you return false, the reference can be neither highlighted nor selected. The AllowReference() method also needs to be implemented for the ISelectionFilter to be complete, but as you don’t care about references in your plug-in, you simply return false from it:

  public bool AllowReference(Reference r, XYZ p)
  {
    return false;
  }

Error Handling

When a program needs to interact with its user but doesn’t anticipate something the user does, it could lead to the program crashing or terminating unexpectedly. .NET provides an exception handling mechanism that can “catch” these – and other – errors in execution. You started by placing your code within the braces of a try block. This tells C# that you wanted the CLR (Command Language Runtime) to watch for exceptions (which may be errors or other atypical events) and report them to the subsequent catch block. You can think of the try statement as something that checks for exceptions, and, as soon as it finds one, stops executing the current block of code and throws it outside of itself to be caught below. The catch block for the type of exception that is thrown will handle it: it’s possible to have multiple catch blocks if different behaviors are needed for certain exceptions.

In this lesson, you added two catch blocks. The first is related to the case where the user might hit “Esc” or right-click their mouse during selection of a group or point: this causes an OperationCanceledException exception to be thrown by the PickObject() or PickPoint() method. Using the following catch block, you simply returned Result.Cancelled from your command implementation, as you believe the logical behavior for the user to see at this point is the command to be cancelled:

    //If user right click or press ESC button, handle the exception
    catch (Autodesk.Revit.Exceptions.OperationCanceledException)
    {
      return Result.Cancelled;
    }

There are other exceptions that might occur during execution of your code, such as when you added a new group to the model via the PlaceGroup() method (although the possibility of this failing is very low). Such errors tend to happen for reasons outside of your control, such as the computer being low on memory. To make sure all such possibilities are considered, a second, more general catch block will handle any .NET exception. The argument of this catch block is System.Exception (which is shortened to Exception as you are using the System namespace in your code), which is the base class for all exceptions in .NET (you could cast any .NET exception to this type, should you wish). When this more general catch block executes, you want the command to fail: you place the message contained in your exception (which you access via its Message property) in the message parameter to the Execute() method and then return Result.Failed. This tells Revit the command has failed and causes it to display the exception information in its standard error dialog.

    //Catch other error.
    catch (Exception ex)
    {
      message = ex.Message;
      return Result.Failed;
    }

Well done! You have just written a more robust plug-in by improving the selection functionality and anticipating the possibility of something unexpected happening with the use of your plug-in, which will, in turn, improve the user experience. While implementing these new functionalities you discovered more programming concepts: overloading, enumerations and using a try-catch block for error handling.
